Technical Features
1. 7 jointed arm delivery system, make it easy for longtime treatment

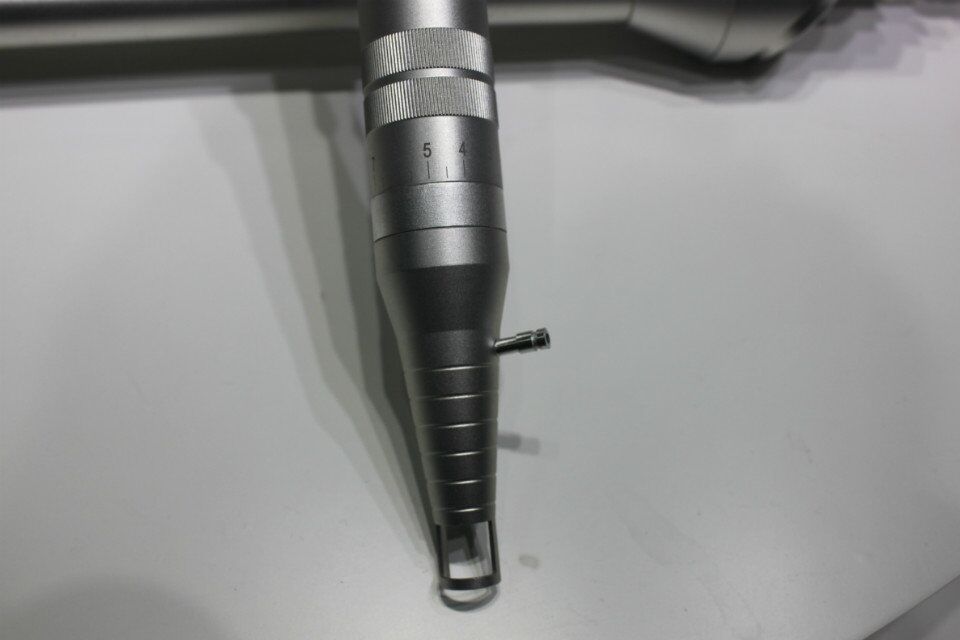

2. Two handpieces choice bade on different treatment mode
3. Red diode laser beam point, find the right treatment area exactly
4. Motor drived auto-switching with 1064/532nm wavelength change
5. Operation and parameter adjustment with color touch screen
Technology Parameter
| Cooling system | Water cooled |
| Single Pulse energy | 250mJ-1500mj |
| Frequency | 1Hz, 2Hz,5Hz |
| Pulse Duration | 10±3ns |
| Wavelength | 1064nm, 532nm |
| Output mode | Q-switch Pulsed output |
| Fuse | 220V, 10A |
| Wastage power | 800VA |
| Weight | 100kg |
| Dimensions | 920× 555 ×1065mm not including joints arm |
Safety distance NOHD 1km. Operator must wear goggles
Work mode Continually work with intervals
Spot Size Continually adjustable
Optical and electrical performance
Energy of single pulse 250mj-1500mj
Unstable output range ST≤±10%
Output repeat Rj<10%
Error of expected energy
and practical energy ≤±20%
Spot diameter 1-4mm adjustable
Focus error ≤±0.5mm
Pc output power of collimate laser 0.1mW≤Pc≤5mW
Adjustable range of Joints arm Horizontal≥45o Uprightness 60cm-80cm
Working Theory
Utilizing the explosive effect of the ND: YAG LASER, the laser permeate the epidermis into the dermis and takes effect on pigment mass and is absorbed by pigment. Since the laser pulses is extremely short in nanosecond and comes with super high energy, the pigment mass would swell quickly and break into small pieces, which will be eliminated through metabolism. In this case, the pigments become lighter gradually and finally disappear.
Main Application
1. Treat many kinds of disease, naevus of Ota and naevus of Ito, birth mark,and etc.
2. Body tattoo removal, black, blue, red, brown etc colors
3. Pigmented lesions: Lentigines, age-spots, speckles, sun-burn spots.
4. Vescular lesions: Telangiectasis and erythema.
